H - Frame (Pillar) Power Press

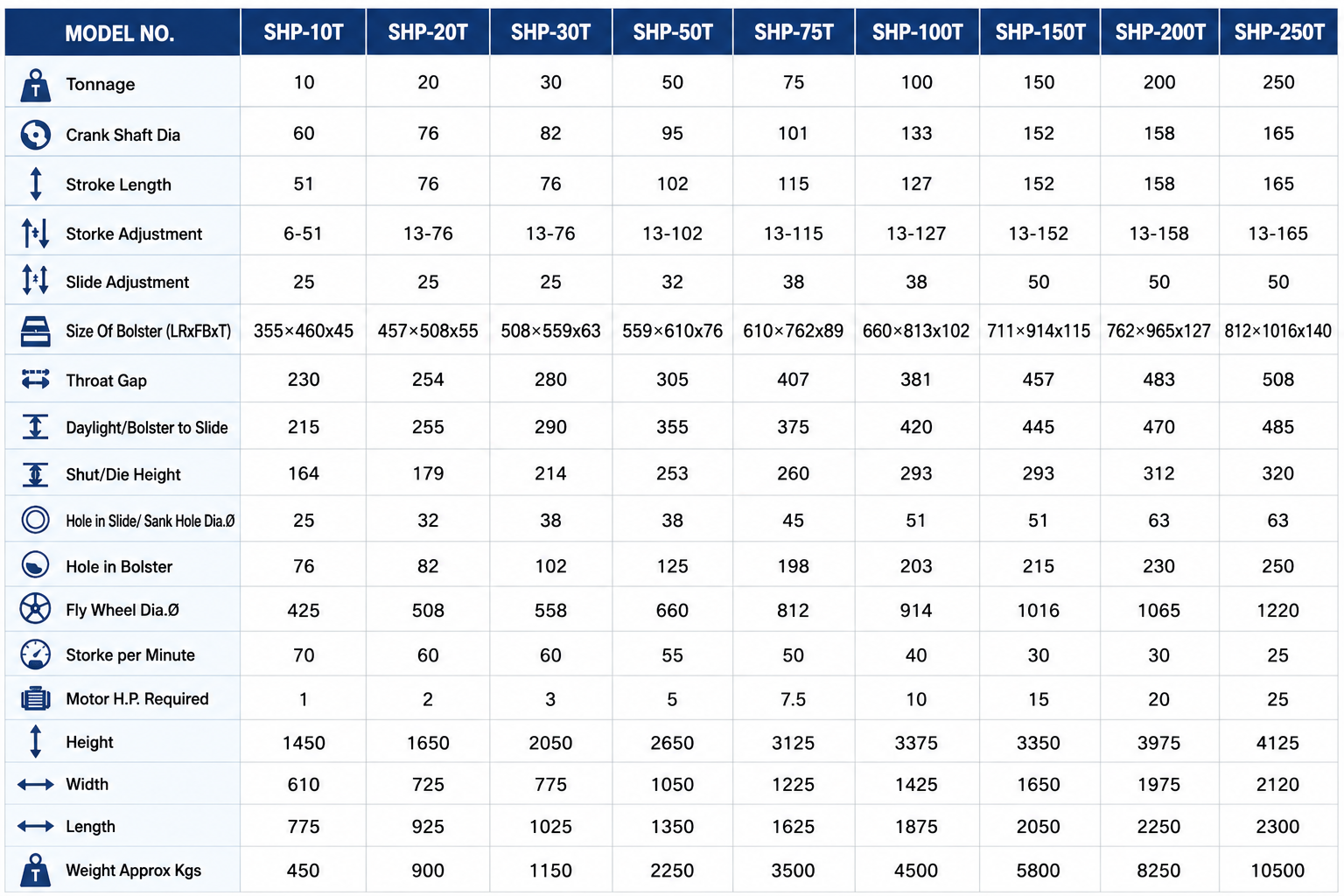

FRAME CONSTRUCTION

Mechanical H (Pillar) Type Power Press machine fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.

TABLE & SLIDE (RAM)

Table and Slide are made of high grade heavy duty cast iron and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.

MAIN AND PINION SHAFT

Shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life and accuracy.

ROLLING KEY CLUTCH

Made of alloy steel for positive engagement and continues operation heavy three key ways. Single rolling key system is incorporated in the machine ensuring easy and efficient working of the machine. Gears: Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

FLYWHEEL

Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the cutting operations, and properly balanced for smooth running. Lubrication: Single shot lubricator provides oil to all the lubrication points, where necessary. Thus all bearing parts and guide surface etc.

LUBRICATION SYSTEM

Single shot lubrication provides oil to all the lubrication points, where necessary, thus all bearing parts and guide surface, etc.
