H - Frame (Pillar) Pneumatic Press

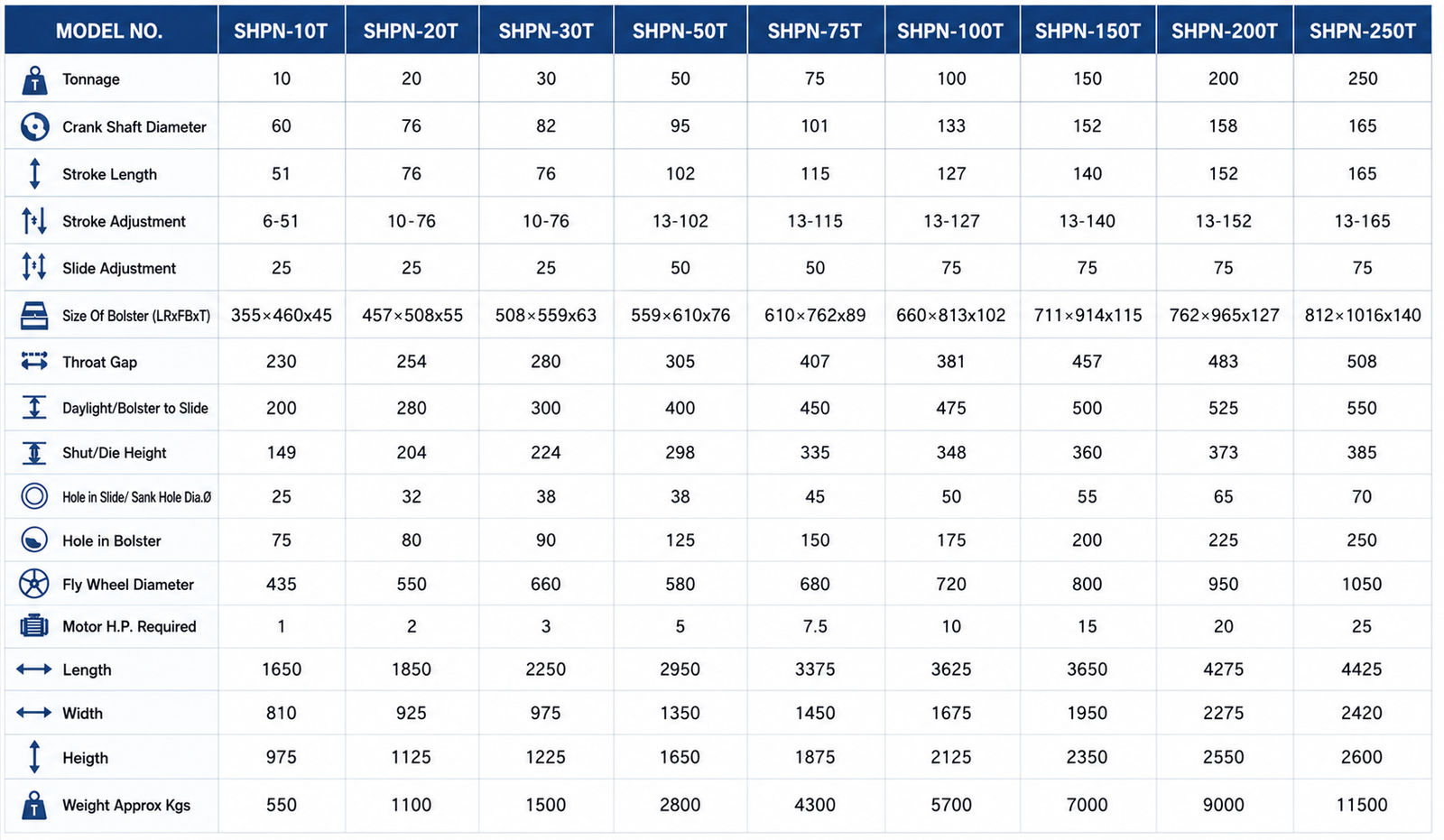

FRAME CONSTRUCTION

H Frame (Pillar) Pneumatic Press fabricated from IS-2062 graded rolled steel plates. Frame is deeply reinforced and fines machines after stress reliving. The interlocked design put the direct support to frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.

TABLE & SLIDE (RAM)

Table and Slide are made of high grade heavy duty cast iron and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation. Main and Pinion Shaft: Shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life and accuracy.

MAIN AND PINION SHAFT

The shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life and accuracy.

GEARS

Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

FLYWHEEL

Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the cutting operations, and properly balanced for smooth running.

HIGH QUALITY CRANK SHAFT

The strong crank shaft with outstanding rigidity ensures that accuracy can be maintained under qualified standard and extends the life of tooling. Auto Lubrication System: The auto lubrication system with default monitor ensures high reliable operation.

AUTO LUBRICATION SYSTEM

The auto lubrication system with default monitor ensures high reliable operation.

DUAL SAFETY VALVE

The interlock mechanism on the dual valve keeps the clutch and brake from mis-actuation when valve is default.

PNEUMATIC DRY CLUTCH

The fail-safe, pneumatically operated clutch brake combination is designed to provide excellent slide motion control even at high speeds. Adequate energy required for blanking operation is ensured by optimised design of the flywheel.
