C-Frame Hydraulic Press
Products Detail

C-Frame Hydraulic Press

Hydraulic C-frame power press offering adjustable speed and precision pressure control for deep drawing and forming.

Request Price Quote Talk to Engineer

Product Overview

Standard Equipments

Optional Equipments

  • Variable Stroke Adjustment With Limit Switch.

  • Front Operator Control Box.

  • Movable Foot Switch.

  • Digital Stroke Counter.

  • Operation & Maintenance Manual.

  • PLC System With HMI

  • Die Clamping.

  • Die Cushion

  • Safety Grill

  • Photo Safety Curtain

FRAME CONSTRUCTION

Frame is fabricated from IS-2062 graded rolled steel plates table and cutting beam deeply reinforced and fines machines after stress relieving. The interlocked design put the direct support to the frame. These frames are strain-free and eliminate welds at load supports. Thus the accuracy of the machine is never disturbed.

TABLE & SLIDE (RAM)

Table and Slide are made of high grade heavy duty cast iron / steel fabricated and properly seasoned. They are perfectly aligned, to each other to obtain high accuracy and precession press operation.

CYLINDER

The cylinder bodies are precisely made from forged steel material duly bored and fine honed for long sealing life. The piston rods are made From EN – 8 material having low carbon contents. The piston rod is hard chrome platted (0.200 micron).

HYDRAULIC SYSTEM

The compact Blocks eliminate the leakage chances and also reduces the hydraulic pipes. This low Noise hydraulic system is placed on the rear side of machine, on top between two side plates. Pressure relief value is provided to safe guard the system and Machine from overload. The hydraulic system is driven by an electric motor of reputed brand and is coupled with a pump capable of generating more than the required pressure. Pressure gauge for system pressure, back pressure and holding pressure are providing on top of oil tank for quick reference.

ELECTRICAL CONTROL PANEL

The electric control panel is located on the left hand side of the machine. It is assembled from the internationally reputed parts for consistent performance, reliability and availability, if needed to be replaced. It is wired cleanly and labelled/ferruled properly as per the international practices to help easily locate any fault and replace components conveniently..

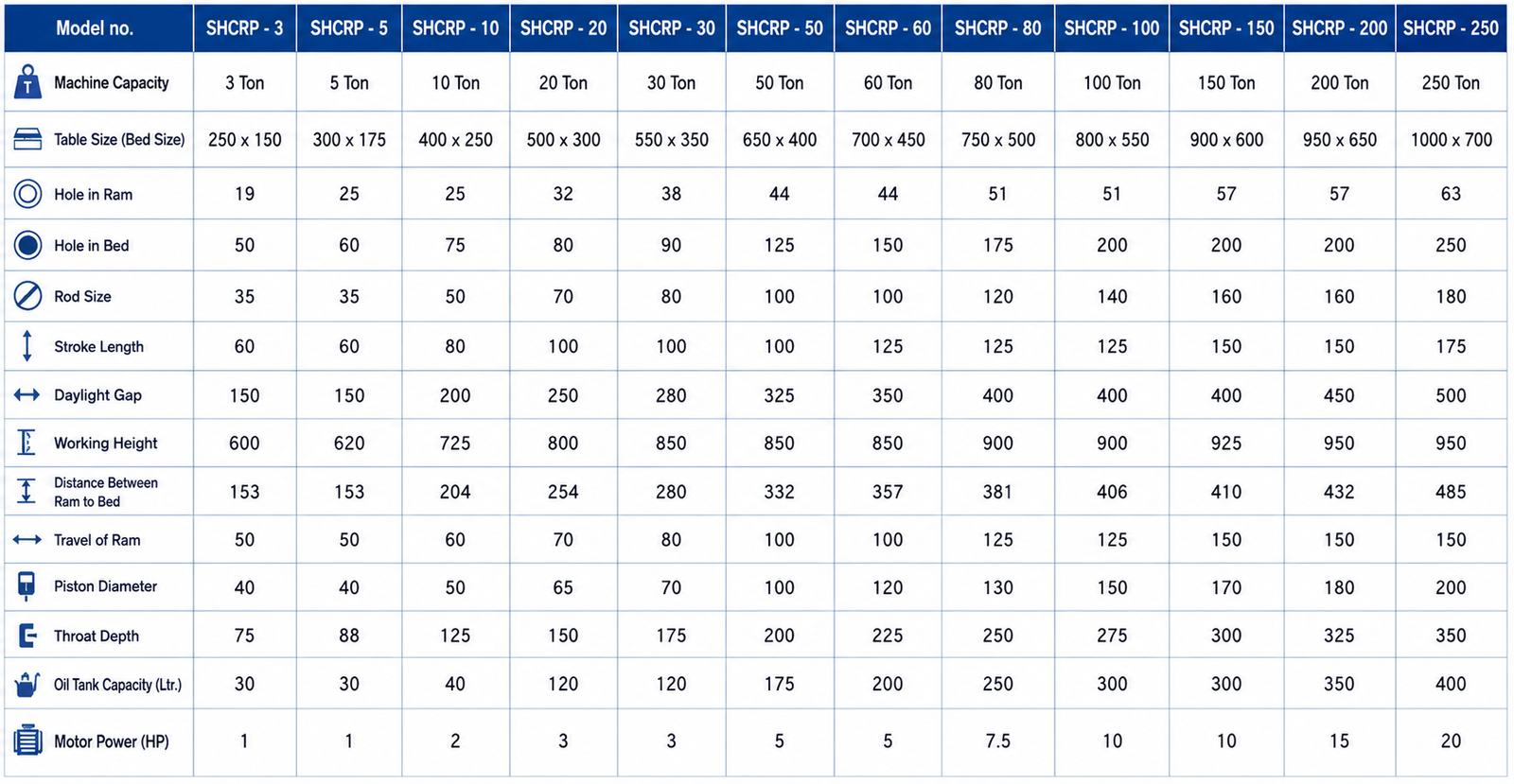

Technical Specifications

Standard Model
Technical Specifications

* Note: custom specifications can be engineered upon request to match specific industrial limits.
